Machine Specifications

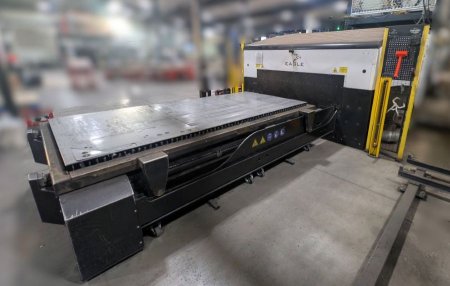

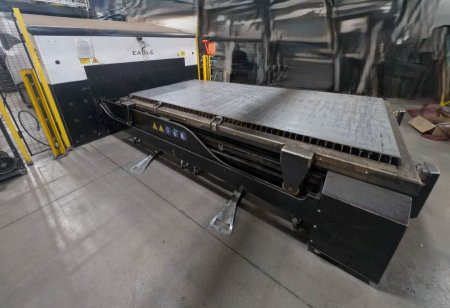

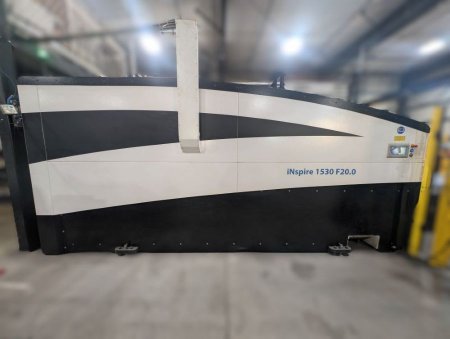

Model: Eagle iNspire 1530 F20.0
Working Range:
X-axis: 3060 mm
Y-axis: 1540 mm
Z-axis: 100 mm
Maximum Sheet Weight: 1000 kg
Machine Dimensions
Length: 10000 mm
Width: 3080 mm
Height: 3060 mm
Weight: 18 t
Maximum Speeds
Maximum Cutting Speed: 150 m/min
Parallel to the X, Y axes: 240 m/min
Simultaneously: 340 m/min
Axis Parameters
Repetitiveness: 0.03 mm
Cutting Precision: 0.05 mm
Max. Acceleration: 60 m/s2
Maximum Cutting Thickness
Mild Steel: 60 mm
Stainless Steel: 60 mm
Aluminum: 50 mm
Brass: 30 mm
Copper: 25 mm
Equipped With

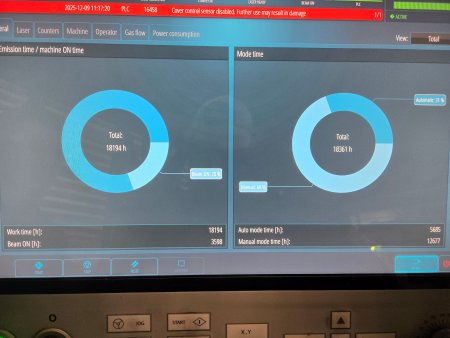

CNC Control

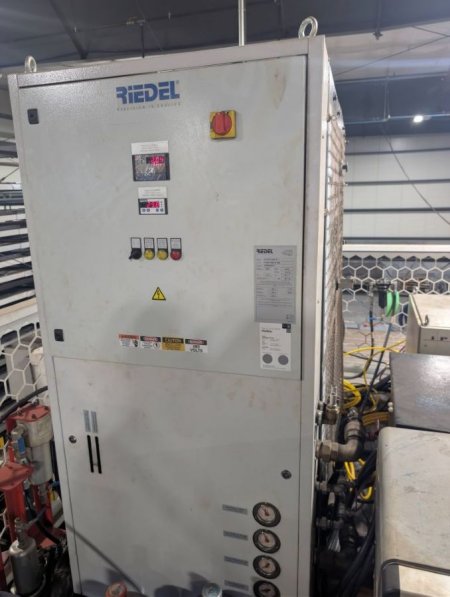

Riedel Chiller

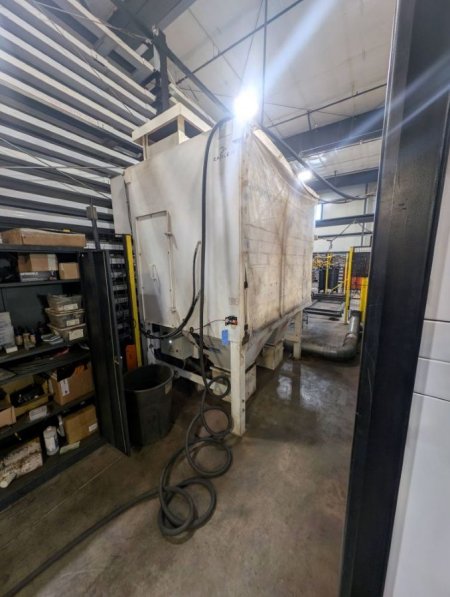

Donaldson Dust Collector

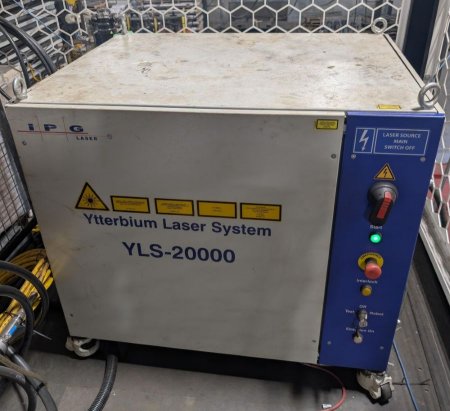

IPG YLS-20000 Power Source
Gas Mix Lines
