Machine Capacity & Workpiece Specs
Maximum Sheet Size: 60.04 in x 120.08 in

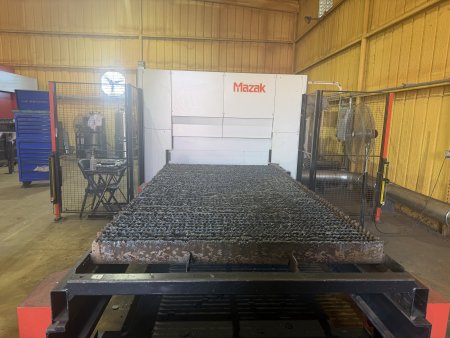

Table Design: Flying optics with static palleted table workstation
Work Table Height: 35.43 in
Maximum Workpiece Weight: 2,050 lbs
Axis Stroke & Motion Performance
X-Axis Travel: 122 in
Y-Axis Travel: 63 in
Z-Axis Travel: 5 in
X-Axis Rapid Traverse Speed: 4,724 IPM (inches per minute)
Y-Axis Rapid Traverse Speed: 4,724 IPM
Z-Axis Rapid Traverse Speed: 2,362 IPM
Axis Acceleration System: High-acceleration bridge gantry style (1.8G rating)
Laser Resonator & Power
Oscillator Type: State-of-the-art Variable Beam Fiber Laser
Maximum Power Output: 10,000 Watts (10.0 kW)
Wavelength: 1.07 m
Beam Optimization: Automated Beam Diameter Control & Variable Beam Mode
shaping

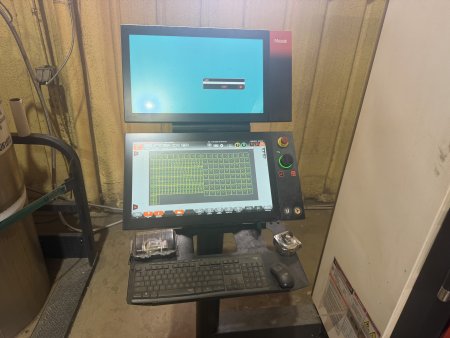

CNC Control System
Control Unit: MAZATROL SmoothLx CNC
Display Interface: Dual monitors including a 21.5" primary color touchscreen
Panel Mobility: Rotating and tilting panel for access from either front or
side doors
Programming Framework: EIA / ISO standard G-code and conversational
programming
Footprint & Physical Dimensions
Total Machine Width: 114 in
Total Machine Length: 385 in
Total Machine Height: 91 in
