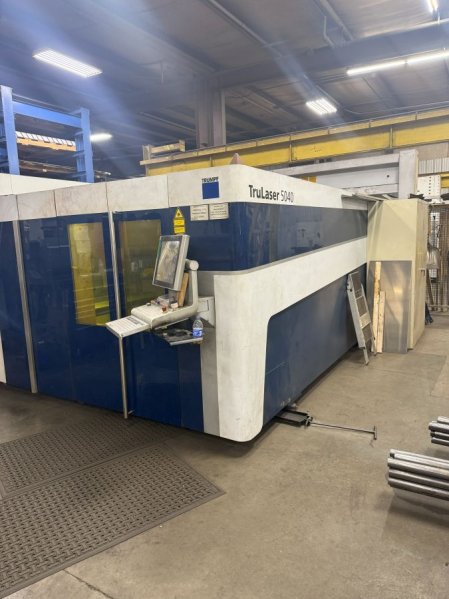

5000 WATT TRUMPF TRULASER 5040 FIBER LASER, 78" X 157",MFG:2014   Our stock number: 12943

5000 WATT TRUMPF TRULASER 5040 FIBER LASER, 78 X 157 ,MFG:2014

Click on picture below for larger version
5000 WATT TRUMPF TRULASER 5040 FIBER LASER, 78 X 157 ,MFG:20145000 WATT TRUMPF TRULASER 5040 FIBER LASER, 78 X 157 ,MFG:2014


Specifications
Working Range:
X axis: 157"
Y axis: 78"
Z axis: 4.5"
Maximum Axial Speeds:
Simultaneous, approximate: 10,443 IPM
Accuracy:
Smallest Programmable Increment: .0004"
Positioning Accuracy: .004"
Repeatability: .001"

Control
Trumpf CNC Control: Siemens

TruDisk 5001 Resonator
Maximum Power: 5000 Watts
Maximum Material Thickness
Mild steel: 25 mm (~ 1")
Stainless steel: 20 mm (~0.787")
Aluminum: 20 mm (~0.787")
Brass: 10 mm (~0.39")
Copper: 10 mm (~.39")
