Specifications
Motion Package:
Travel Method: Stationary table X, Y and Z axis movement for cutting head
Control Method: X, Y and Z simultaneous 3-Axis control
Drive Motors: Fanuc AC Servo motors
Maximum Sheet Size (X, Y): 120" x 60"
Maximum Axis Travel (X, Y, Z): 121" x 61" x 3.93"
Maximum Positioning Speed (X, Y)
Per Axis: 4,724 inches per minute
45 Vector: 6,693 inches per minute
Maximum Speed Z-axis: 4,724 inches per minute
Repeatability: +/- 0.0002"
Maximum Material Weight: 2,000 lbs.
Maximum Material Thickness
Mild steel: 0.875"
Stainless steel: 0.375"
Aluminum: 0.312"
Assist Gas: 4 ports with NC Pressure control
Electrical Requirements: 200V, 3 Phase, 60 Hz
Fiber Laser resonator (Engine):
Model: AJ2000 with ENSIS Technology
Resonator Style: LD Excited Yb fiber
CW Output Power: 2 KW
Peak Pulse Output Power: 2 KW
Power stability: +/- 2%
Laser Wave Length: 1.08 microns
Laser Power Model Selection: CW, gated pulse (CNC Controlled)
Laser Beam Model Output: Multimode mode
Beam Divergence: < 3mm-mrad
Pulse Frequency: 1-10000Hz
Pulse Duty: 0-100%
Chiller Water Requirements: > or = 41 L/min
Interlocks: Electrical, mechanical, and chiller
Electrical Requirements: 200V, 3-phase, 60 Hz, 12kVA max.
Electrical Power Consumption: 9KW
Equipped with:

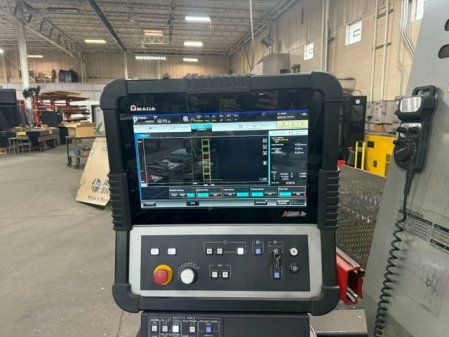

AMNC 3i control

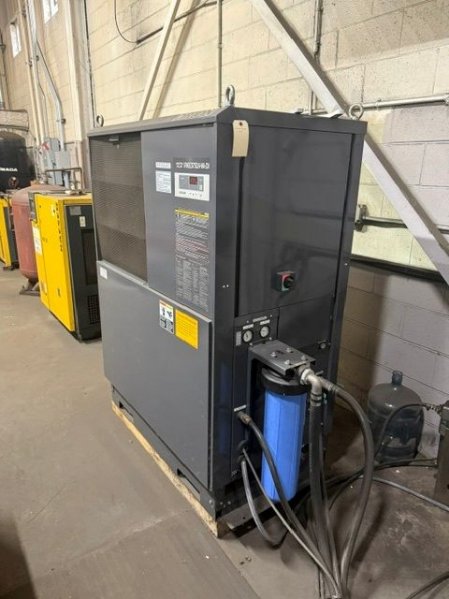

Chiller
Dust Collector
