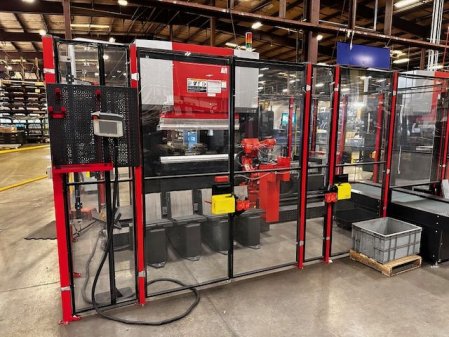

67 TON X 53.1" AMADA EG6013ARS SERVO PRESS BRAKE W/6-AXIS ROBOTIC CELL,MFG:2021   Our stock number: 12878

67 TON X 53.1 AMADA EG6013ARS SERVO PRESS BRAKE W/6-AXIS ROBOTIC CELL,MFG:2021


SPECIFICATIONS:

CAPACITY:
Maximum Tonnage Capacity: 67 Ton
Maximum Bending Length: 53.1"
Stroke Length: 6"
Open Height: 16.5"
Approach Speed: 8.7"/sec.
Bend Speed: 1"/sec.
Return Speed: 8.7"/sec.
Floor Space: 211" L x 154" Wide x 105" High
Weight of Brake: 8,200 Lbs.

ROBOT:
Axis Configuration: 6-Axis
Carriage Axis: 120"
Max. Part Weight: 22 Lbs.
Maximum Reach P-Point: 39.25"
Tool Holder Length: 49.2"
Max. Tool Length: 31.5"
Number of Tools: 10

Tool Clamp
Punch/Die: AMTS Type III-S
Tool Holder Length: 49.2"
Tool: Modular tool and STC spec. Height=6"

Tool Stocker
Tool Handling: Robot
Stocker Length: 31.5"
Number of Stockers: 10 Stocker (Total 20 Punch + Die)
Stocker Location: RH Side
Tool Weight Totol: 635 lbs

Load/Unload
Load: Loading Flat (12" x 12") or Vertical (12" x 6.7")
Unload: Drop in box or pass through conveyor

Equipped with:
Dual Electric Servo Power Drive
Amada 3i CNC Control with Vertical 18.5" Multi-Tool Display
Automatic Tool Changer
Yaskawa High Precision 7-Axis Bending Robot
