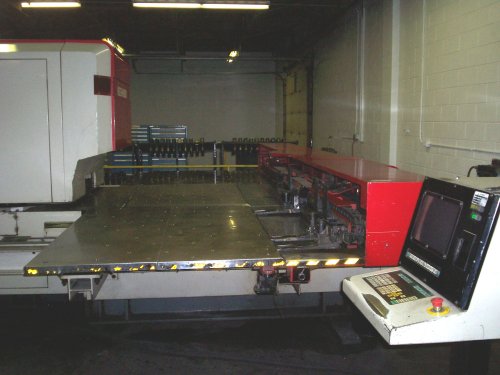

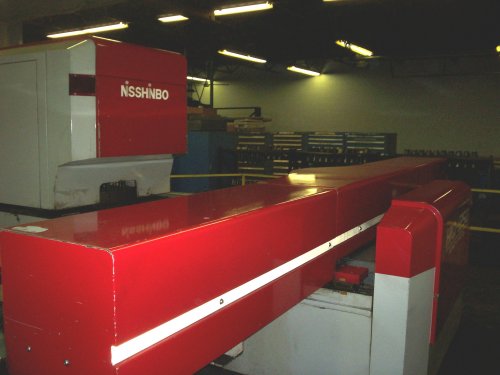

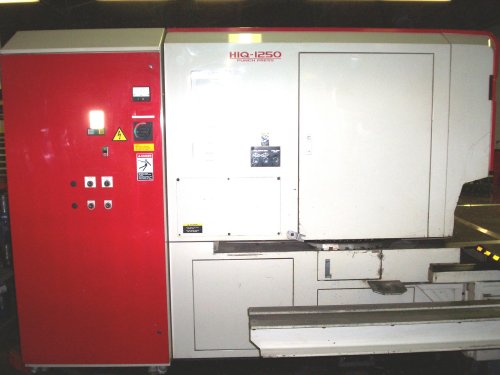

33 Ton, NISSHINBO, HIQ1250PAL-510T, 37 STATION THICK TURRET, 3 A/I, 1998,   Our stock number: 9378

33 Ton, NISSHINBO, HIQ1250PAL-510T, 37 STATION THICK TURRET, 3 A/I, 1998,

Click on picture below for larger version
33 Ton, NISSHINBO, HIQ1250PAL-510T, 37 STATION THICK TURRET, 3 A/I, 1998,33 Ton, NISSHINBO, HIQ1250PAL-510T, 37 STATION THICK TURRET, 3 A/I, 1998,33 Ton, NISSHINBO, HIQ1250PAL-510T, 37 STATION THICK TURRET, 3 A/I, 1998,33 Ton, NISSHINBO, HIQ1250PAL-510T, 37 STATION THICK TURRET, 3 A/I, 1998,


Max. material thickness (.250")
Hole capacity (3.500" O in 11 Ga.)
41.3mm O in 6.35mm thk. mat'l (1.625" O in .250")
Hydraulic Servo Punching Force 33 tons
X/Y location accuracy +/- .05 degrees
Auto-index accuracy ( .004")
Axis control simultaneous 5 axis X,Y,T,C AC servo, R Hyd. servo
Max. workpiece size standard
(98.4" x 49.2")
w/repositioning (196.85" x 49.2")
Maximum sheet weights
- without outboard tables: 397 lbs.
- at maximum axis speed: 220lbs.
Turret drive Bi-Directional
Turret configuration
Thick Standard
46 stations
Auto-index 3" - 2

Feed clearance - thick .787"
Production rates 1" centers: 260 hpm
nibble: 650 hpm
Axis speed - standard 2400 ipm/ 3,394 ipm diagnal
Auto-index speed 30 rpm, Bi-directional
Electrical 208/230/460/60 43 KVA
Air requirements 150NL/min. (3.5 SCFM/ .5 CFM at 90 psi)
Control type NISSHINBO PAL-510T
Interface RS-232C standard
Multi-tasking Standard
Graphic programming Standard 14" color monitor
Program storage Floppy disk, 100 programs
Memory 1024KB, 127 programs max., 14 programs with 2000 blocks each, Max. size

single program 3000 blocks

Dimensions

Length x Width x Height:
208.3" x 178.7" x 88.6"
Weight: Approximately 42,000 lbs.
