FOL3015NT Standard Features

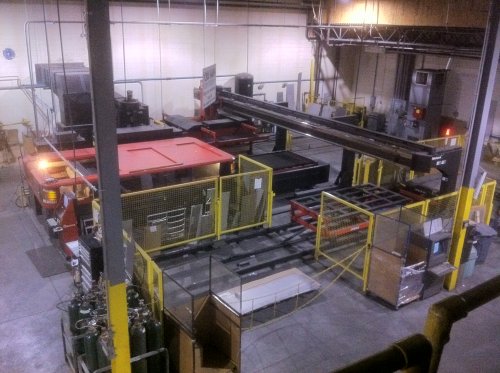

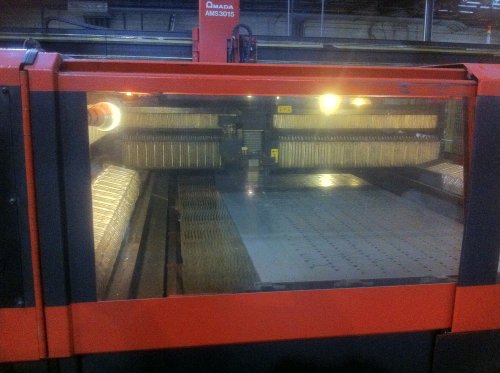

The FOL 3015NT Linear Drive Laser System combines the very latest developments

in machine, CNC, and laser resonator technologies. Speed, acceleration, and

accuracy are only three of the features that truly make this linear drive

laser like no other. The rugged, single piece cast frame, light weight, rugged

gantry, and high speed sensor cutting head makes this revolutionary design the

natural choice for high speed fabrication needs. The 3 axis linear drive

motion system generates maximum positioning speeds of 13,386 inches per minute

and an acceleration of 5G

Improved setup is achieved by:

The Amada AMNC PC based control with touch screen and a full keyboard
The cartridge style lens and one touch nozzle
The shuttle table design for externalized setup
Reliability and performance are insured by:

High speed, high accuracy linear drives
Solid, single piece cast frame
The flexibility of the egg-crate table design readily accommodates prototype

and formed parts processing.
"Three-try-restart" in conjunction with the egg-crate table design minimizes

part tip up for reliable operation with minimal operator intervention.
Edge Control and Automatic Corner Control provides consistent piercing and

sharp, burn free corners.
The high-speed CNC incorporates a cutting data library and available network

interface. The RF excited laser resonator automatically calibrates itself at

power up ensuring cutting parameter repeatability.
Automatic maintenance scheduler built into the control

Travel Method Stationary table, X, Y and Z-axis movement for cutting head
Control Method X, Y and Z simultaneous 3 axis control
Drive Motors Linear
Maximum Sheet Size 60" (Y) x 120" (X)
Maximum Axis Travel 61" (Y) x 121" (X) x 3.94" (Z)
Maximum Axis Positioning Speed 9,450 inches per minute (240m/min) per axis

(13,386 inches per minute 45 vector)
Maximum Speed Z-Axis 4,725 inches per minute
Positioning Accuracy 0.0004" for the entire table
Maximum Material Weight 1,500 lbs.
Assist Gas Automatic 4 ports with NC pressure Control
Laser Power 4500 watts
CNC Controller
Model AMNC-F
Display LCD Color Graphics Display
Control Function X, Y, Z-Axis Simultaneous and Focus Lens B-axis, Adaptive

Optic and Laser Power control (CW, Gated Pulse, Pierce Routines etc.)
Data Input Method Touch screen, Keyboard, Ethernet, Wireless, CD, USB, 3"

Floppy disk
Minimum Command Unit 0.0001" (X, Y, Z)
Minimum Travel Unit 0.0001" (X, Y, Z)
Standard Memory 2 MB
Hard Drive 10 GB
Operating Modes Automatic and Manual
Display Modes Program Contents, Position Information, Program Check,

Settings, Parameters, Beam Diameter Compensation, Assist Gas Status, Self

Diagnostics
Interlock Displays Cooling Water Status, Gas Pressure Status, Vacuum Status,

Turbo Blower Malfunction, Shutter Status, Beam Power, Resonator Discharge,

Door Open
