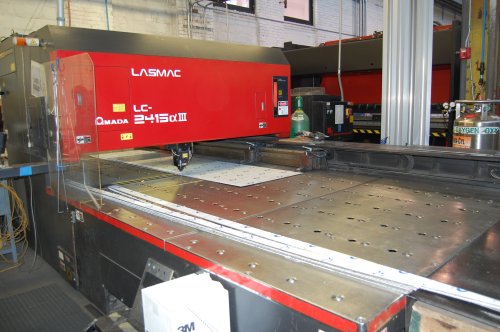

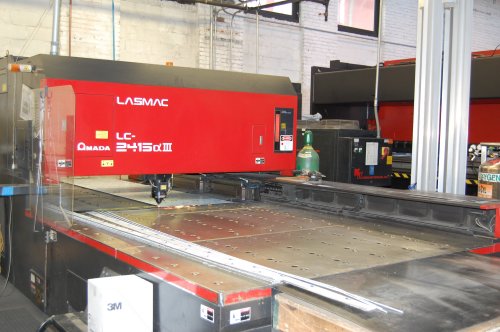

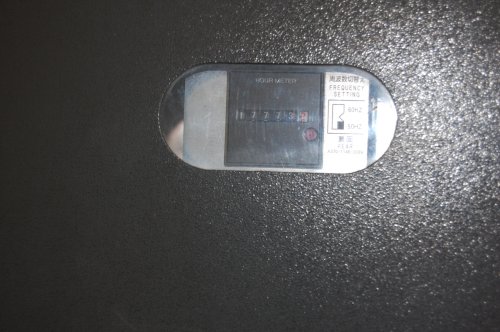

Motion Package
Travel Method: X axis for work piece movement, Y axis
for cutting head movement
Control Method: X, Y & Z simultaneous 3 axis control and B
axis
Drive Motors: FANUC AC Servo (X, Y, Z and B)
Maximum Sheet Size: 61" (Y) x 198" (X) with one repositioning
cycle
Maximum Axis Travel: 61" (Y) x 99" (X) x 11.8" (Z) x 0.78" (B)
Maximum Cutting Speed: 2362 IPM
Maximum Table Speed: 3,149 IPM. per axis (4,454"/min. 45O vector)
Maximum Speed - Z-Axis: 2362 IPM
Positioning Accuracy 1: 0.0004"/20"
Repeatability: 0.0002"
Maximum Material Weight: 727 lbs. (5' x 10' x 3/8" or 4' x 8' x 1/2")
Number of Clamps: 3
Work Chute: 66" (Y) x 21" (X)
Assist Gas: 4 ports, part program selectable
Machine Size (WxDxH): 99" x 225" x 90"
Machine Weight: Approx. 20,000 lbs. including laser resonator
Electrical Requirements: 208 VAC, 3 phase, 60 Hz., 10 KVA
(1) Processing accuracy will be different

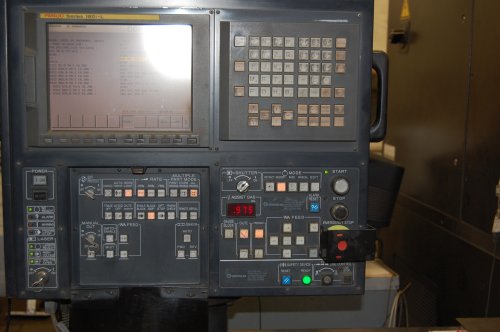

CNC Controller
Model: FANUC 160i-L - 32 bit
Display: LCD Color Graphics Display
Control Function: X, Y,Z, and B Simultaneous 3 Axis and B
axis Laser Power Control
Input Method: MDI, Edit, DNC or 3" PC Compatible Floppy
Disk
Minimum Command Unit: 0.0001" (X, Y, Z)
Minimum Travel Unit: 0.0001" (X, Y, Z)
Standard Memory: 128K (320m)
Optional Memory: Expandable to 256K or 512K
Operating Modes: Automatic, MDI & Manual
Display Modes: Program Contents, Position Information, Program Check,
Settings, Parameters, Beam Diameter Compensation, Assist Gas Status, Self
Diagnostics
Interlock Displays Water Temperature, Gas Pressure, Vacuum Leak, Blower
Malfunction, Shutter Power, Discharge, Assist Gas, Door Open
Electrical Requirements: Included in Machine Requirements
