TRUMPF,TCL3030,4000 WATT, SIEMANS, 5' X 10' DUAL PALLET, LIFTMASTER,MFG:2007   Our stock number: 9162

TRUMPF,TCL3030,4000 WATT, SIEMANS, 5' X 10' DUAL PALLET, LIFTMASTER,MFG:2007

Click on picture below for larger version

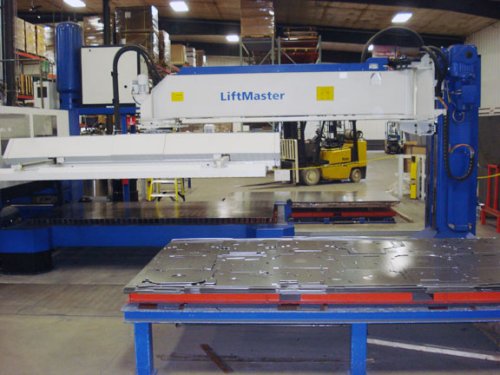

TRUMPF,TCL3030,4000 WATT, SIEMANS, 5' X 10' DUAL PALLET, LIFTMASTER,MFG:2007TRUMPF,TCL3030,4000 WATT, SIEMANS, 5' X 10' DUAL PALLET, LIFTMASTER,MFG:2007



SPECIFICATIONS:
MODEL: TCL3030
WORKING AREA
X-AXIS: 120"
Y-AXIS: 60"
Z-AXIS: 5"
MAX. WORKING WEIGHT: 1562 LBS.
MAX. POSITIONING SPEED
AXIS PARALLEL: 2400 IPM
SIMULTANEOUS: 3340 IPM
ACCURACY, SMALLEST PROGRAMMABLE INCREMENT: .0004"

THIS MACHINE IS EQUIPPED WITH:
TRUMPF TLF 4000 TURBO LASER W/ ELECTROMAGNETIC BEARINGS
SIEMENS CONTROL
AUTOMATIC PALLET CHANGER
LIFTMASTER LOAD/UNLOAD SYSTEM

DIMENSIONS & WEIGHT:
LENGTH: 366"
WIDTH: 181"
HEIGHT: 79"
WEIGHT: 25,300 LBS.

RESONATOR:
MODEL: TLF-4000 TURBO
MAX. LASER OUTPUT: 4000 WATT
ADJUSTABLE OUTPUT RANGE: 200 - 4000 WATT
ELECTROMAGNETIC BEARINGS
