33 Ton, AMADA, OCTO 334,FANUC 6M, 8 STA., 1 A/I, THICK STYLE, 1984,   Our stock number: 9118

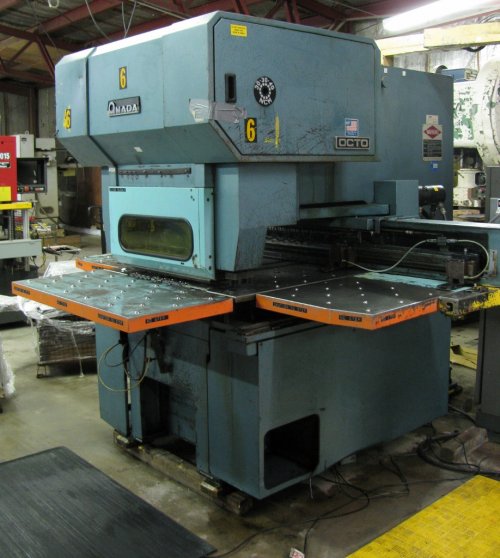

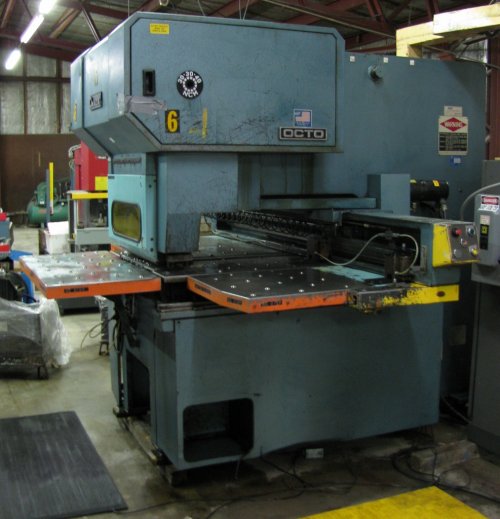

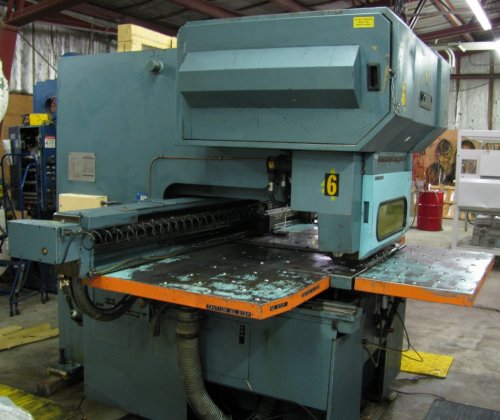

33 Ton, AMADA, OCTO 334,FANUC 6M, 8 STA., 1 A/I, THICK STYLE, 1984,

Click on picture below for larger version
33 Ton, AMADA, OCTO 334,FANUC 6M, 8 STA., 1 A/I, THICK STYLE, 1984,33 Ton, AMADA, OCTO 334,FANUC 6M, 8 STA., 1 A/I, THICK STYLE, 1984,33 Ton, AMADA, OCTO 334,FANUC 6M, 8 STA., 1 A/I, THICK STYLE, 1984,
33 Ton, AMADA, OCTO 334,FANUC 6M, 8 STA., 1 A/I, THICK STYLE, 1984,33 Ton, AMADA, OCTO 334,FANUC 6M, 8 STA., 1 A/I, THICK STYLE, 1984,


Capacity......................................33 Ton
Number of Stations........................... 8 (Thick-W/One Auto Index)
Maximum Traverse..............................29.928" x 39.37"
Maximum Sheet With Repositioning..............29.928" x 78.740"
Maximum Sheet With Appropriate Support Tables.60" x 120"
(Has Rear Address Clamps)
Maximum Sheet Thickness.......................250"
Press Stroke..................................300 S.P.M.
Hits Per Minute (on 1" Centers)...............150
Feed Speed....................................1,575. I.P.M.
Accuracy (When New)......................... .005"

OVERALL DIMENSIONS
F To B (With Table Down).......................94.84"
L to R.........................................120.67"
Height.........................................87.48"
Weight.........................................20,000 Lbs.

EQUIPPED WITH
One (1) Auto Index Station

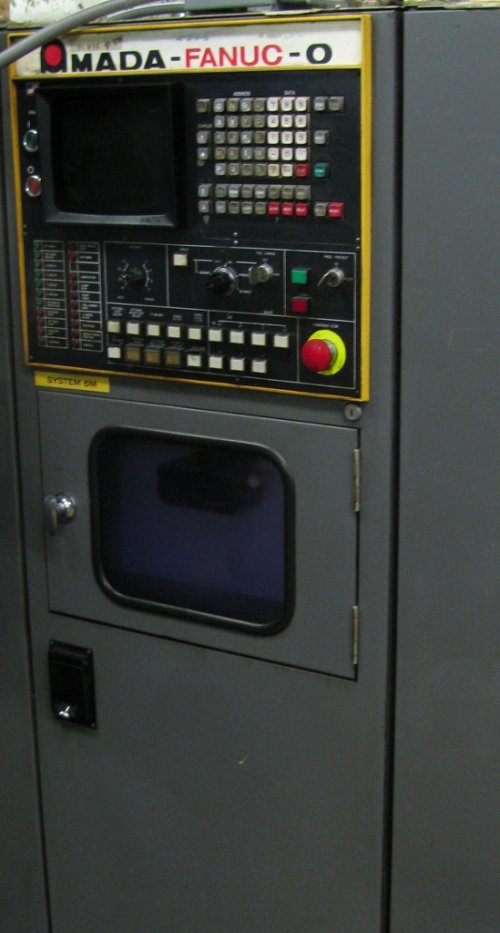

Fanuc System 6M CNC Control
Auto Sheet Repositioning

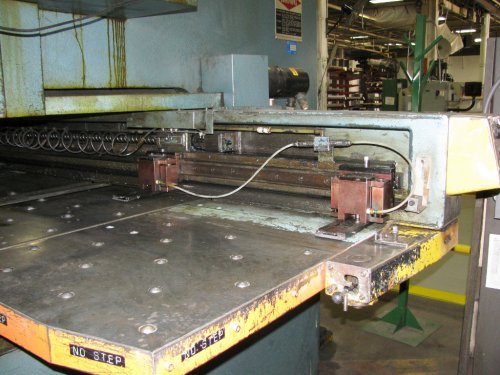

Rear Address Clamps (Sheet Can be Flipped Front to back for 60" W.)
Thick Style Turret
Horsepower: 5
