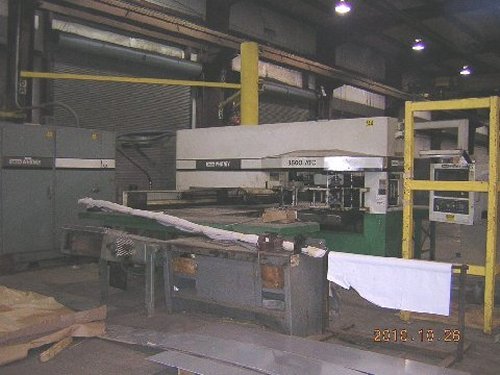

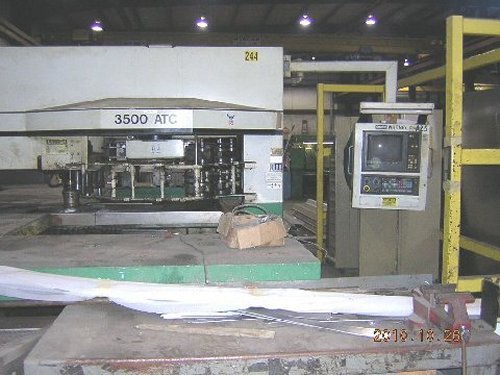

40 Ton, W.A. WHITNEY, 3500 ATC, FANUC,   Our stock number: 9060

40 Ton, W.A. WHITNEY, 3500 ATC, FANUC,

Click on picture below for larger version
40 Ton, W.A. WHITNEY, 3500 ATC, FANUC,40 Ton, W.A. WHITNEY, 3500 ATC, FANUC,40 Ton, W.A. WHITNEY, 3500 ATC, FANUC,40 Ton, W.A. WHITNEY, 3500 ATC, FANUC,



Capacity: 40 Ton
Maximum Sheet Size: 90" x 50" (without Repositioning)
Maximum Positioning Area: 90" (X-Axis); 50" (Y-Axis)
Maximum Positioning Speed: 1200 IPM (X & Y)
Maximum Sheet Thickness: .500" (Punching); .500" (Plasma Cutting)
Maximum Workpiece Weight: 650 Lbs.
Maximum Hole Diameter (Punching): 5" in .250" Material
1" in .500" Material
Maximum Hit Rate: 165 HPM (on 1" Centers in 10 Ga. Material)
Nibbling Speed: 250 HPM
Plasma Cutting Speed: 250 IPM (.060" Thick)
135 IPM (.250" Thick)
100 IPM (.375" Thick)
80 IPM (.500" Thick)

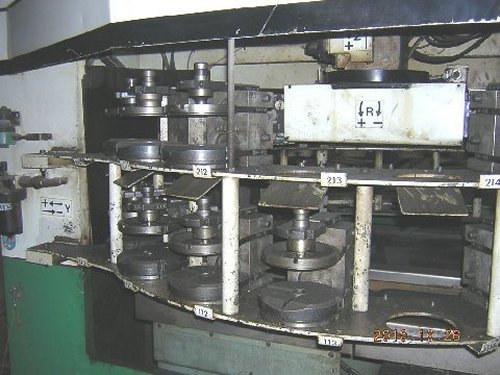

ATC Capacity: 30 Stations


EQUIPPED WITH:

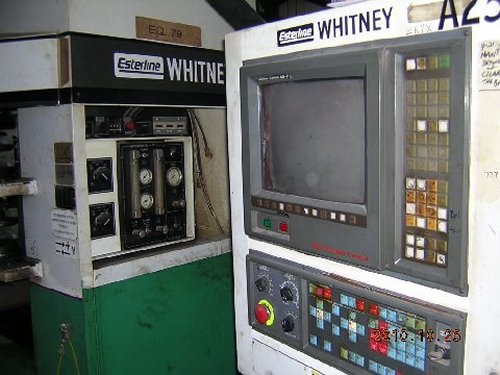

Fanuc Series 16-p CNC Control
Hypertherm HT2000 (Manual Gas Console)
