GENERAL SPECIFICATIONS:
CAPACITY 25 TONS
MAXIMUM SHEET THICKNESS 0.31"
MAX. PUNCH DIAMETER 3"
Y-AXIS TABLE TRAVEL 50"
X-AXIS TABLE TRAVEL 100"
MAXIMUM STROKES PER MINUTE ON 1" MOVES 300
MAXIMUM STROKES ER MINUTE ON CONTOURS 600
MAXIMUM WORKPIECE WEIGHT 331 LBS
MAXIMUM DISTANCE BENEATH STRIPPER 1.5"
MAXIMUM SPEEDS
X-AXIS 3545" INCHES PER MINUTE
Y-AXIS 2362" INCHES PER MINUTE
C-AXIS (PUNCH HEAD) 360 DEGREES PER SECOND
SIMULTANEOUS AXIS SPEEDS 4300 INCHES PER MINUTE
TOOL CHANGE TIME 1.5 - 6.5 SECONDS
EQUIPPED WITH:

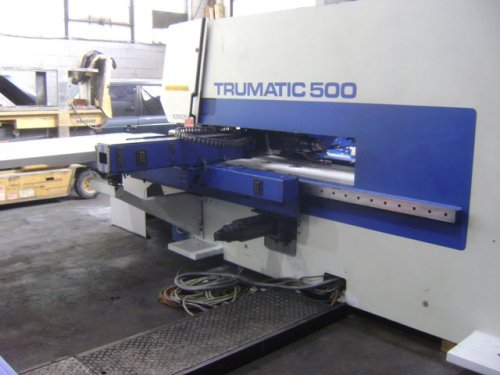

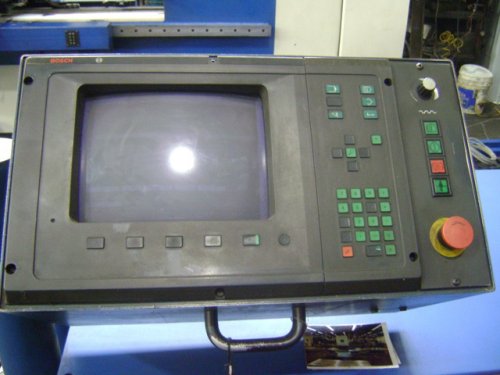

BOSCH CC220S CNC CONTROL
18 STATION LINEAR TOOL CHANGER ON X-AXIS RAIL
PROGRAMMABLE TOOL ROTATION
AC SERVO MOTORS
MULTI-TOOL & HIGH SPEED MARKING
TOOL CARTRIDGES
HYDRAULICALLY DRIVEN RAM (HIGHER AND MORE VARIABLE STROKE RATES)
HYDRAULIC TOOL CLAMPS
PROGRAMMABLE SPRAY MIST LUBRICATION

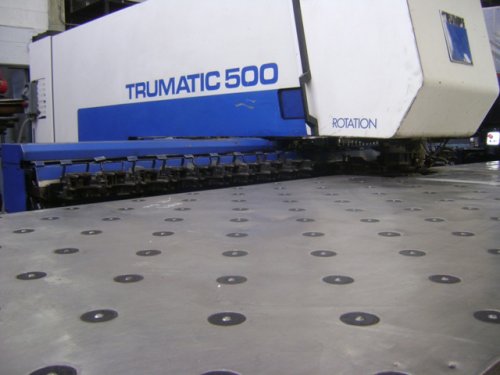

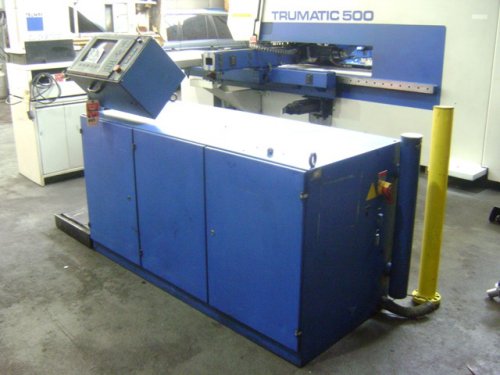

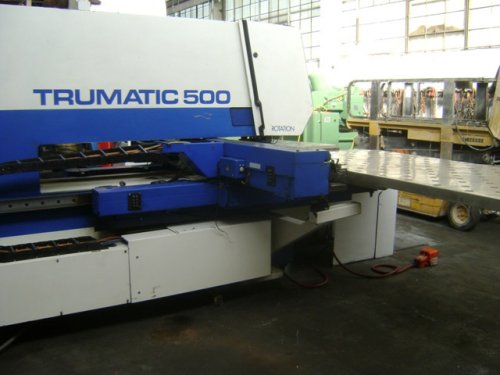

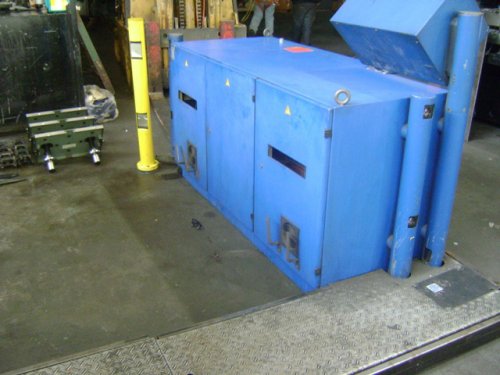

SELF CONTAINED HYDRAULIC SYSTEM
VACUUM FOR SLUG REMOVAL
AUTOMATIC LUBRICATION
AUTOMATIC SCRAP CHUTE

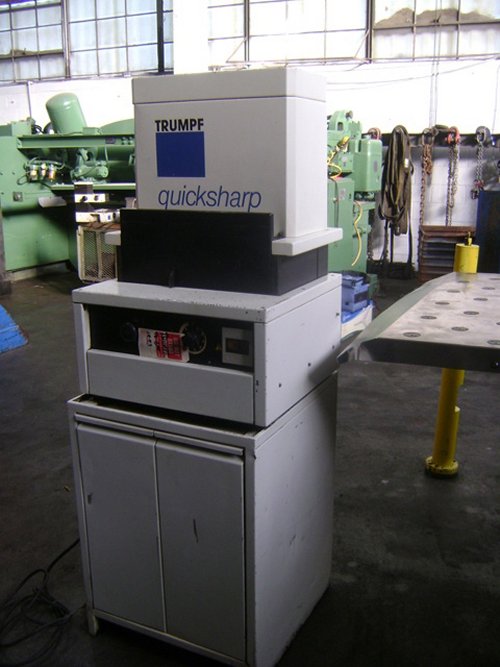

trumpf quicksharp tool grinder

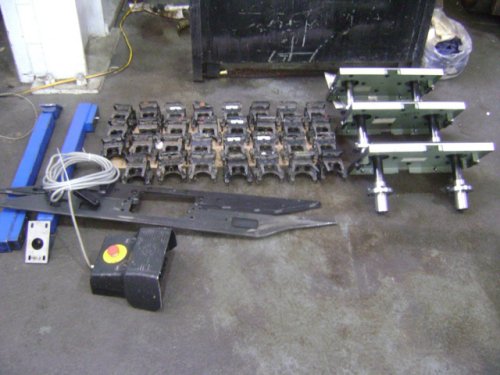

tooling package- see attached list
Weight approx. 24361 lbs
ELECTRICAL REQUIREMENTS 17 KVA
OIL CAPACITY 37 US GALLONS
*machine DECOMMISSIONED and packed by trumpf
Overall Dimensions Approx. 272LR x " 228FB x " 82.6H
