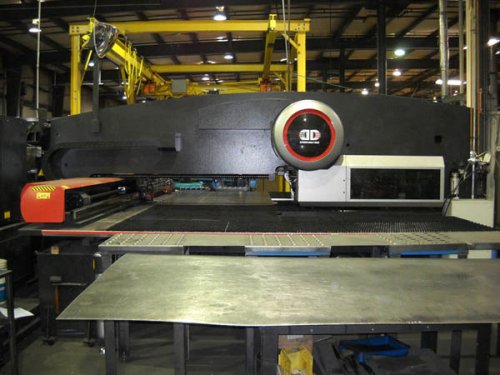

EML K3610NT Standard Features
The EML K3610NT combines the latest developments in machine, servo-electric
punching, CNC and laser resonator technologies. The EML K3610NT is a
specialist in high-speed production of short run sheet metal parts, especially
those that incorporate forming allowing many parts to be completed in a single
setup
Efficient manufacturing of parts with minimum setup and maximum machine
utilization.
Single operation allows for minimal part handling and reduced labor costs. Go
from purchase order to invoice in one easy operation.
Combines the advantages off a high speed, servo-electric punch press with the
flexibility of up to 4000W of laser power. Can be considered a turret punch
press with minimum setup or a laser with high-speed cutting and forming
capabilities.
Significant savings on tooling and improved part turnaround time.
High speed punching with a servo-electric, direct twin drive system that
dramatically increases ram speed and eliminates unnecessary ram motion.
High speed laser cutting by utilization of "Hybrid" laser motion system.
100" X-axis can process 8' sheets without repositioning which reduces process
time and improves accuracy.
Quiet operation with variable ram speed and laser cutting of large holes.
Virtually eliminates slug pulling with the power vacuum system.
High quality forming operations with
programmable dwell at bottom of stroke for complete plastic deformation.
Progressive forms, flanges and embossments eliminate secondary operations
Reduced vibration of the direct twin drive ram combined with the rigid bridge
frame ensures tighter tolerances extending tool and machine life while
producing high quality, distortion free parts.
Brush table design provides scratch free processing, eliminating secondary
finishing.
Freestanding PC-based network CNC control
allows for flexible layout.
Technical Specifications
Motion Package
Travel Method Punching: X and Y axes work piece movement, Laser X-axis work
piece moves, YL-axis laser beam moves
Control Method X, Y, YL, Z, T, B, & C Simultaneous 3 axis control
Drive Motors Fanuc AC Servo (X, Y, YL, Z, T, C)
Maximum Sheet Size Combination: 60" (Y) x 200" (X) with one repositioning
cycle
Rapid Traverse X-axis: 3950"/min
Y-axis: 3150"/min
YL-axis: 3150"/min
Z-axis: 2362"/min
Max. Cutting Speed (laser) 787"/min
Repeatability 0.000276"
Minimum input unit 0.0001"
Brush Table Standard
Axis Drive Ball Screw
Assist Gas Change Automatic 4 ports with NC pressure Control
Work Height 43.504"
Work Chute Size 17.32" (X) x 60" (Y)
Maximum Workpiece Weight 165 lbs. at F1 (maximum axis speed) 330 lbs. at F4
(slowest axis speed)

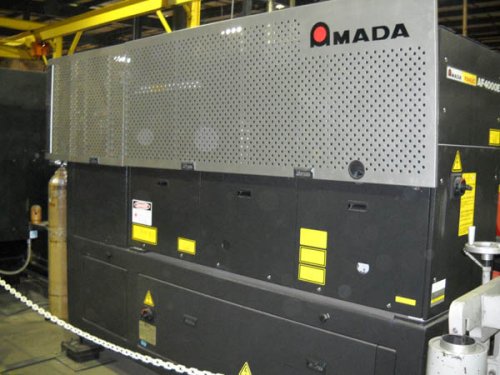

Laser Power 4000 watts
CNC Controller
Model Amada AMNC-F
Display Display
Control Function X, Y, YL, Z, simultaneous 3 axes, plus laser power control
(CW, Pulse), T, C axes.
Input Method 3.5" Floppy Disc, Network (Ethernet), CD, USB, Keyboard, Touch
Screen
Minimum Input 0.0001"
Minimum Command Unit 0.0001"
Operating Modes Automatic, Manual & Origin
Display Modes Program Contents, Position Information, Message, Program Check
(Draw), NC Status and Cutting Conditions
I/O Interface LAN, USB
Display 15" color LCD
