33 TON, AMADA, VIPROS 367 QUEEN, FANUC 18P, 58 STA.,2 A/I, 2001   Our stock number: 8684

33 TON, AMADA, VIPROS 367 QUEEN, FANUC 18P, 58 STA.,2 A/I, 2001

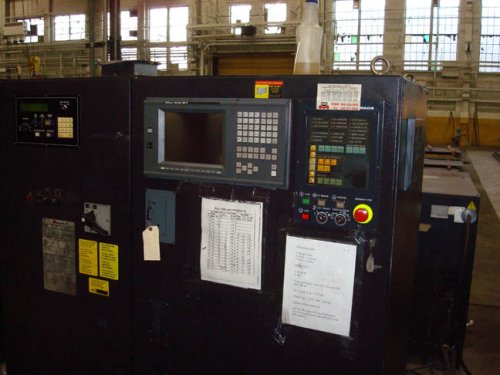

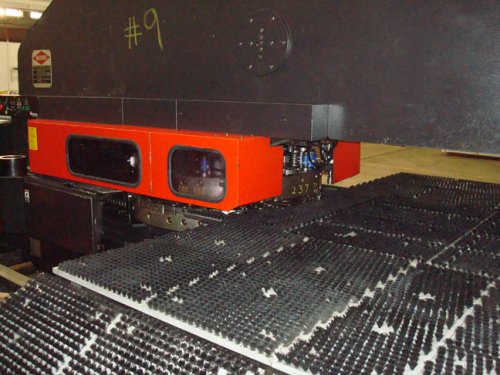

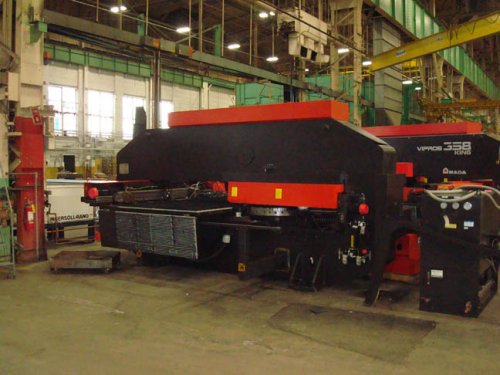

Click on picture below for larger version
33 TON, AMADA, VIPROS 367 QUEEN, FANUC 18P, 58 STA.,2 A/I, 200133 TON, AMADA, VIPROS 367 QUEEN, FANUC 18P, 58 STA.,2 A/I, 200133 TON, AMADA, VIPROS 367 QUEEN, FANUC 18P, 58 STA.,2 A/I, 2001


SPECIFICATIONS:

PRESS CAPACITY: 33 TONS
TABLE SIZE: 60" x 72"
MAX. SHEET SIZE: 60" x 144"
MAX. MATERIAL THICKNESS: 25"
MAX. SHEET WEIGHT: 265 LBS.
MAX. X&Y FEED SPEED: 2560/1,968
TURRET ROTATION SPEED: 30 MAX.
RAM STROKE: 1.25 HIT RATE 2mm (.078") PITCH:
520 HIT RATES: 25mm (1") PITCH: 275
PUNCHING ACCURACY: +/- .004, Repeatability +/-.001
NO.OF TURRETS: 58 STATIONS, 2 AUTO INDEX
DIAGONAL TABLE SPEED: 3229 IPM
POSITIONING SPEED: 2783 IPM
HI-SPEED POSITIONING: 4,229 IPM
