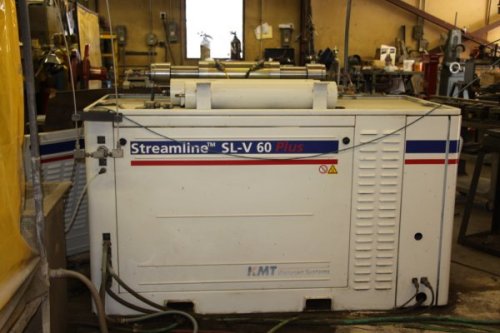

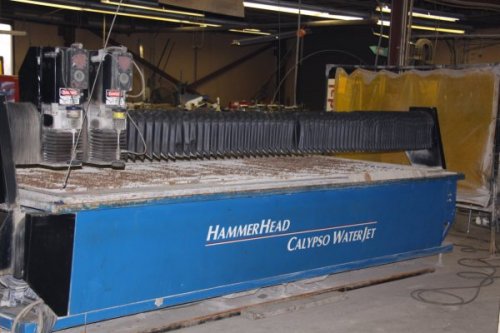

CALYPSO, HAMMERHEAD, 6' x 12', KMT SL-V 60, 60HP, 60KPSI INTENSIFIER, MFG:2005   Our stock number: 8767

CALYPSO, HAMMERHEAD, 6' x 12', KMT SL-V 60, 60HP, 60KPSI INTENSIFIER, MFG:2005

Click on picture below for larger version
CALYPSO, HAMMERHEAD, 6' x 12', KMT SL-V 60, 60HP, 60KPSI INTENSIFIER, MFG:2005CALYPSO, HAMMERHEAD, 6' x 12', KMT SL-V 60, 60HP, 60KPSI INTENSIFIER, MFG:2005CALYPSO, HAMMERHEAD, 6' x 12', KMT SL-V 60, 60HP, 60KPSI INTENSIFIER, MFG:2005



Machine Work Area
Actual X axis travel (Bridge travel or width) 145"
Actual Y axis travel (depth) 73"
Z axis travel 6" to top of Corobed
Z axis maximum clearance 10" to top of grating
Table Size 163.5" between side frames
79" table depth
Motion Accuracy
Linear positional accuracy over full travel of X and Y axis +/-0.003
Over one foot of travel +/- 0.0015
Repeatability +/- 0.002
Straightness +/- .003 per foot
Backlash 0.0005 max
The Calypso HAMMERHEADT Waterjet system is calibrated using a laser

interferometer. The control
package utilizes advanced software and control technology to mathematically

compensate for mechanical
variations in true machine position and backlash, resulting in very high

accuracy.
Machine Dimensions
Total system foot print 25 feet x 25 feet
(estimated for table, pump, console and abrasive hopper)
